Our low-backlash gearboxes make a big impression in tube machining centers

High positioning accuracy and reproducibility as a result of reduced backlash and high torsional rigidity, coupled with the option of individual optimization for special mounting conditions – these features of the planetary and right-angle gearboxes in WITTENSTEIN alpha’s Advanced and Premium Lines were what particularly convinced the developers at J. Neu GmbH. Our gearboxes can be found in their 6-axis tube machining centers, where they score with high machining speed, precise 2D and 3D forming of tubes and profiles and extraordinary efficiency.

PLANETARY AND RIGHT-ANGLE GEARBOXES FOR ALL AXES AND REQUIREMENTS

WITTENSTEIN gearboxes ensure that tubes and profiles are bent with the highest possible dimensional accuracy in 2D and 3D.

PLANETARY AND RIGHT-ANGLE GEARBOXES FOR ALL AXES AND REQUIREMENTS

Read more

J. NEU: PIONEER AND PROTAGONIST OF A SPECIAL, PATENTED BENDING METHOD

J. NEU: PIONEER AND PROTAGONIST OF A SPECIAL, PATENTED BENDING METHOD

J. Neu specializes in the development, design, manufacture and supply of tube and profile machining centers.

Read more

Gearboxes for all axes from a single source

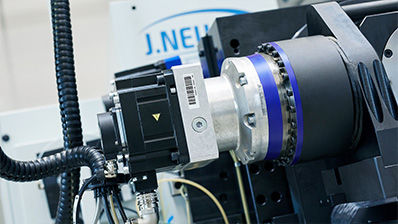

TP+ 110 with output flange

The high torsional rigidity and positioning accuracy were compelling arguments from a process perspective for using the TP+ 110 gearbox with output flange in the bending head from a process perspective. The minimal torsional backlash of less than one arcminute ensures that all parts are bent with high precision and reproducibility, even though the number of load cycles in the bending head is extremely large. The compact design of the TP+ is another key aspect: interruption contours in the machine’s bending chamber are reduced to a minimum, creating more design freedom.

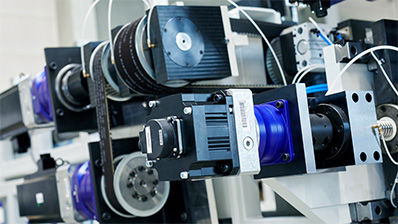

Two SP+ 210s in a gantry configuration

Since tubes and profiles made from mild or high strength steels, stainless steel or aluminum have to be formed on the tube machining centers with an outer diameter of up to 90 mm, it must be possible to control very high forces safely and reliably in the feed axis for the material. J. Neu therefore synchronized two SP+ 210 gearboxes in a gantry configuration in order to produce the required torques and the resulting feed forces. These gearboxes are simultaneously characterized by minimal torsional backlash and high reproducibility when feeding material.

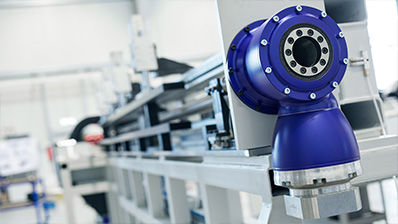

Two SP+ 140s and a modified TK+ 110 right-angle gearbox

Two additional SP+ 140 gearboxes ensure precise and dynamic adjustment of the bending head both vertically and laterally. Customer and application-specific modifications were made to the TK+ 110 right-angle gearbox on the axis for retracting the mandrel. Owing to a planetary roller screw integrated by WITTENSTEIN alpha into the flanged hollow shaft there on the output side, the gearbox can be connected to the retract axis without any additional components. Moreover, the right-angle design significantly reduces the necessary installation space in the extension of this machine axis.

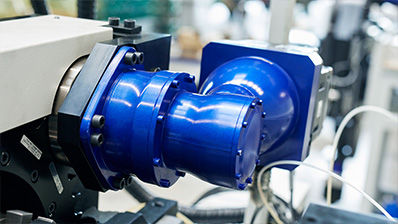

XPK+

A Premium Line gearbox – the XPK+ – is installed on the torsion axis, with which a part can also be formed around its own axis during the bending process if need be. The output interface is a highlight of the XPK+. It was developed with very high torques in mind and enables improved power transmission far exceeding the industry standard. Even high radial and axial forces can be absorbed without any problem. Finally, owing to the exceptional tooth quality, the XPK+ exhibits permanently low torsional backlash in use of less than one arcminute as well as very high torsional rigidity. Here, too, application-specific modifications were made to prevent the gearbox from extending into the bending chamber.

Gearbox design: Three paths to one goal

The CAD POINT online tool, the web based SIZING ASSISTANT and the cymex® 5 sizing software, which requires a license – three different software concepts from WITTENSTEIN alpha that support the selection and sizing of gearboxes and actuators and allow users to request a quote immediately.

CAD POINT

CAD POINT is mainly targeted at customers who already use drive solutions from WITTENSTEIN alpha, are familiar with the applications and benefits and would like to compare configurations or retrieve CAD data with just a few clicks.

More information

SIZING ASSISTANT

The SIZING ASSISTANT is designed for users searching for the quickest way to select the most suitable gearbox for their servo drives or kinematics based on a specific motor or a predefined application.

More information

cymex® 5

When it comes to more detailed sizing tasks – like main axes involving shaft and bearing calculations, the simultaneous definition of any number of axes in one project, an examination of electrically preloaded drives or the optimization of design spaces – the multifunctional cymex® 5 sizing software is the perfect tool.
